WorldBuilder::World Class Reference

#include <world.h>

Collaboration diagram for WorldBuilder::World:

Public Member Functions
	World (std::string filename)
	~World ()
void	declare_and_parse (Parameters &parameters)
double	temperature (const std::array< double, 2 > &point, const double depth, const double gravity_norm) const
double	temperature (const std::array< double, 3 > &point, const double depth, const double gravity_norm) const
bool	composition (const std::array< double, 2 > &point, const double depth, const unsigned int composition_number) const
bool	composition (const std::array< double, 3 > &point, const double depth, const unsigned int composition_number) const

Public Attributes
Parameters	parameters

Static Public Attributes
static const char	path_seperator = '.'

Detailed Description

Definition at line 38 of file world.h.

Constructor & Destructor Documentation

World()

WorldBuilder::World::World

(

std::string

filename

)

Constructor. This constructor requires a atring with the location of the world builder file to initialize the world..

Definition at line 39 of file world.cc.

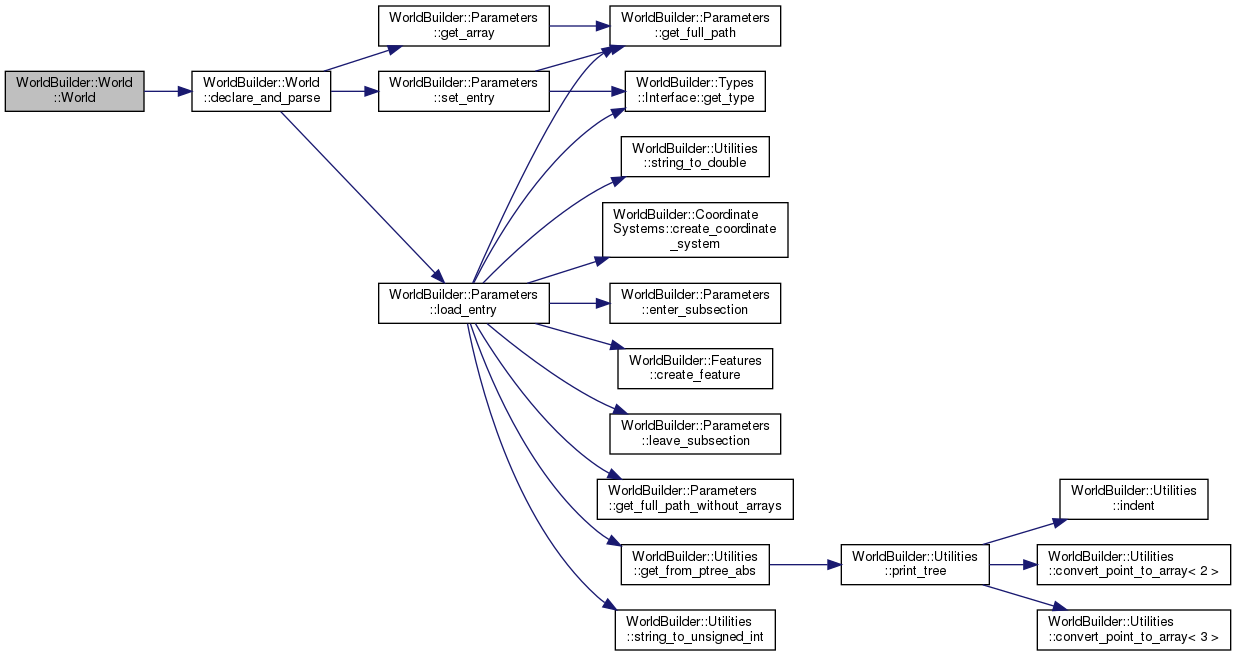

Here is the call graph for this function:

~World()

WorldBuilder::World::~World

(

)

Destructor

Definition at line 47 of file world.cc.

Member Function Documentation

composition() [1/2]

bool WorldBuilder::World::composition	(	const std::array< double, 2 > &	point,
		const double	depth,
		const unsigned int	composition_number
	)		const

Definition at line 153 of file world.cc.

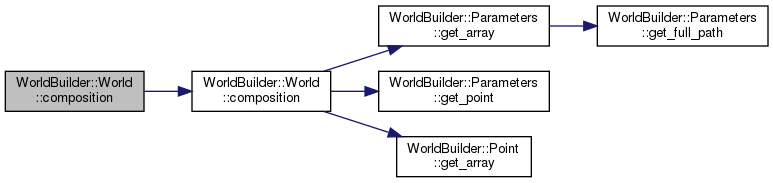

Here is the call graph for this function:

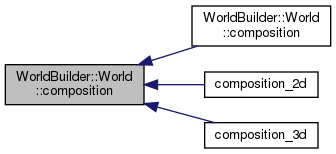

Here is the caller graph for this function:

composition() [2/2]

bool WorldBuilder::World::composition	(	const std::array< double, 3 > &	point,
		const double	depth,
		const unsigned int	composition_number
	)		const

Definition at line 179 of file world.cc.

Here is the call graph for this function:

declare_and_parse()

void WorldBuilder::World::declare_and_parse

(

Parameters &

parameters

)

read in the world builder file

Temperature parameters.

Model rotation parameters.

Coordinate system parameters.

pre-compute stuff for the cross section

Definition at line 50 of file world.cc.

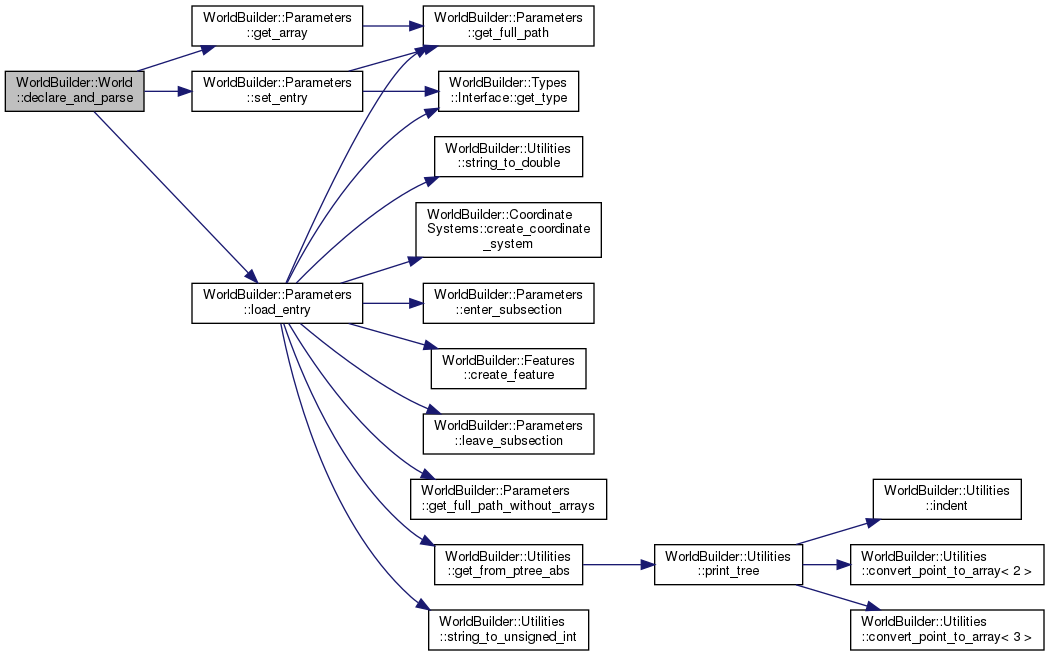

Here is the call graph for this function:

Here is the caller graph for this function:

temperature() [1/2]

double WorldBuilder::World::temperature	(	const std::array< double, 2 > &	point,
		const double	depth,
		const double	gravity_norm
	)		const

Definition at line 107 of file world.cc.

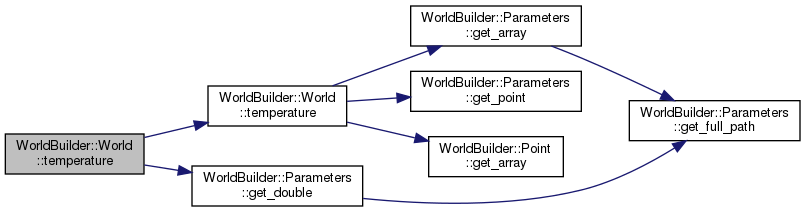

Here is the call graph for this function:

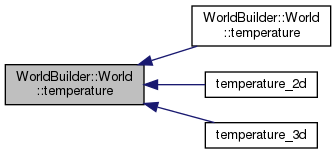

Here is the caller graph for this function:

temperature() [2/2]

double WorldBuilder::World::temperature	(	const std::array< double, 3 > &	point,
		const double	depth,
		const double	gravity_norm
	)		const

Definition at line 135 of file world.cc.

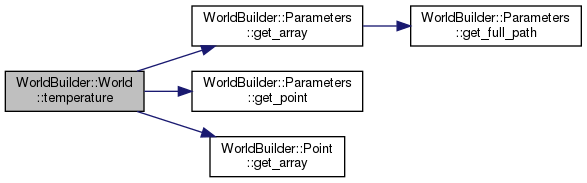

Here is the call graph for this function:

Member Data Documentation

parameters

Parameters WorldBuilder::World::parameters

Definition at line 72 of file world.h.

path_seperator

const char WorldBuilder::World::path_seperator = '.'

static

Stores the path separtor used for the property tree.

Definition at line 69 of file world.h.

---

The documentation for this class was generated from the following files:

• include/world_builder/world.h
• source/world.cc
